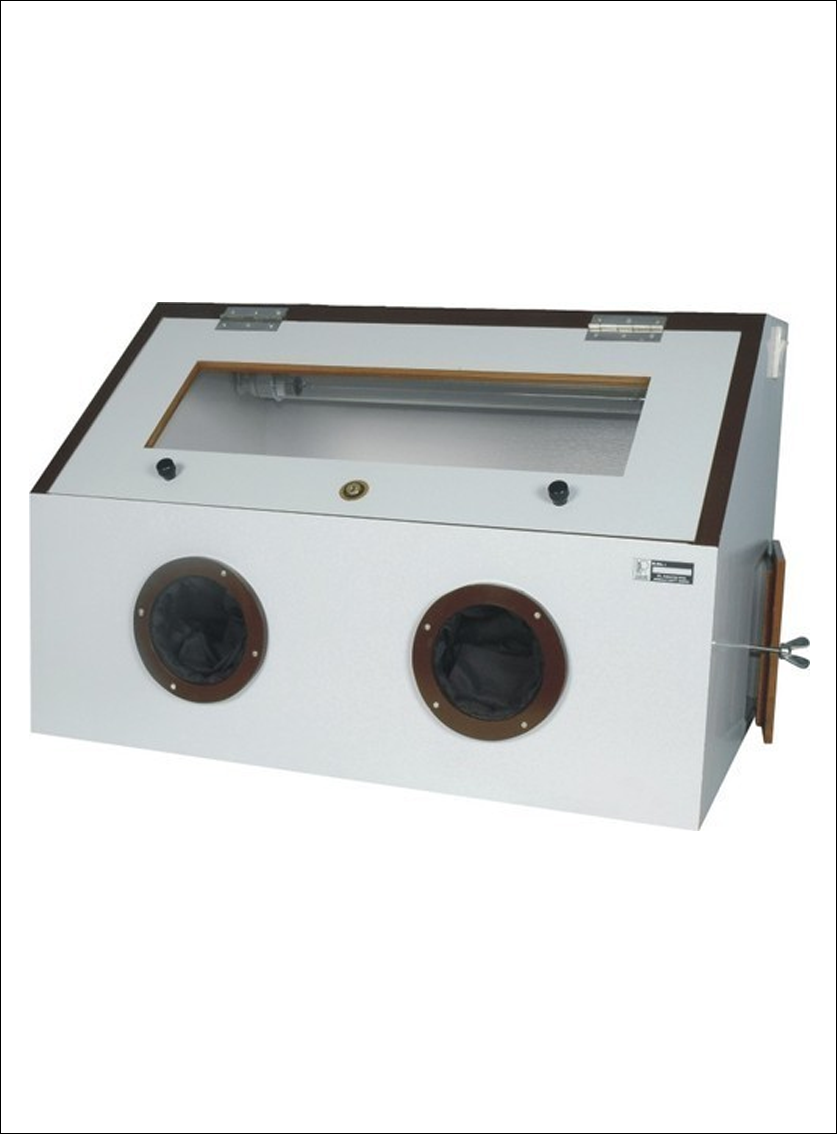

Made out of sunmica clad thick wooden board & sunmica clad working top the unit has framed at front fitted with transparent Plexi Glass /UV & Floroscent tube has an arrangement for keeping the door open if desired.

• 122 x 600 x 600 mm (4x2x2")

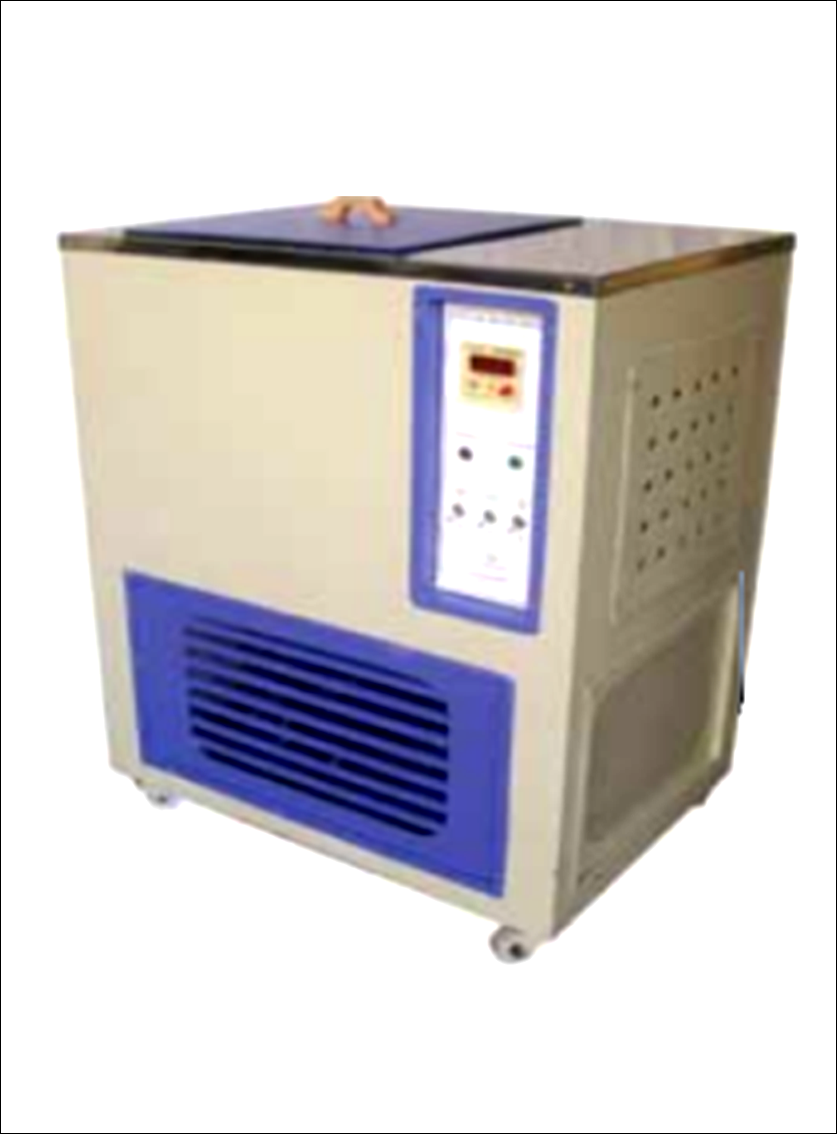

Outer body is made of thick mild sheet duly powder coated / Painted and inner chamber is made on 304 grade stainless Steel. Lid is also double walled properly insulated. Whole unit is mounted on a study angle iron frame . The cooling coils are brazed to the outer side of S.S chamber thus ensuring perfect and uniform Cooling. Insulation is done with thick glass wool / PUF to prevent any heat loss. For attaining the temp. below ambient, the refrigeration is done through CFC FREE hermetically sealed compressor and for attaining the temp. above ambient , heating is done with immersion type heating element. Fitted with stirrer for temperature uniformity throughout the chamber. Temperature range is from 50c to 900C is conlrolled Digital temp. Indicator cum controller with an accuracy of +-.50C. To work on 220/230 Volts AC Supply. The unit is also fitted with FHP PUMP for circulating the cooled liquid to an external source such as condenser Coil, etc.

• Size : 12" x12" 12"

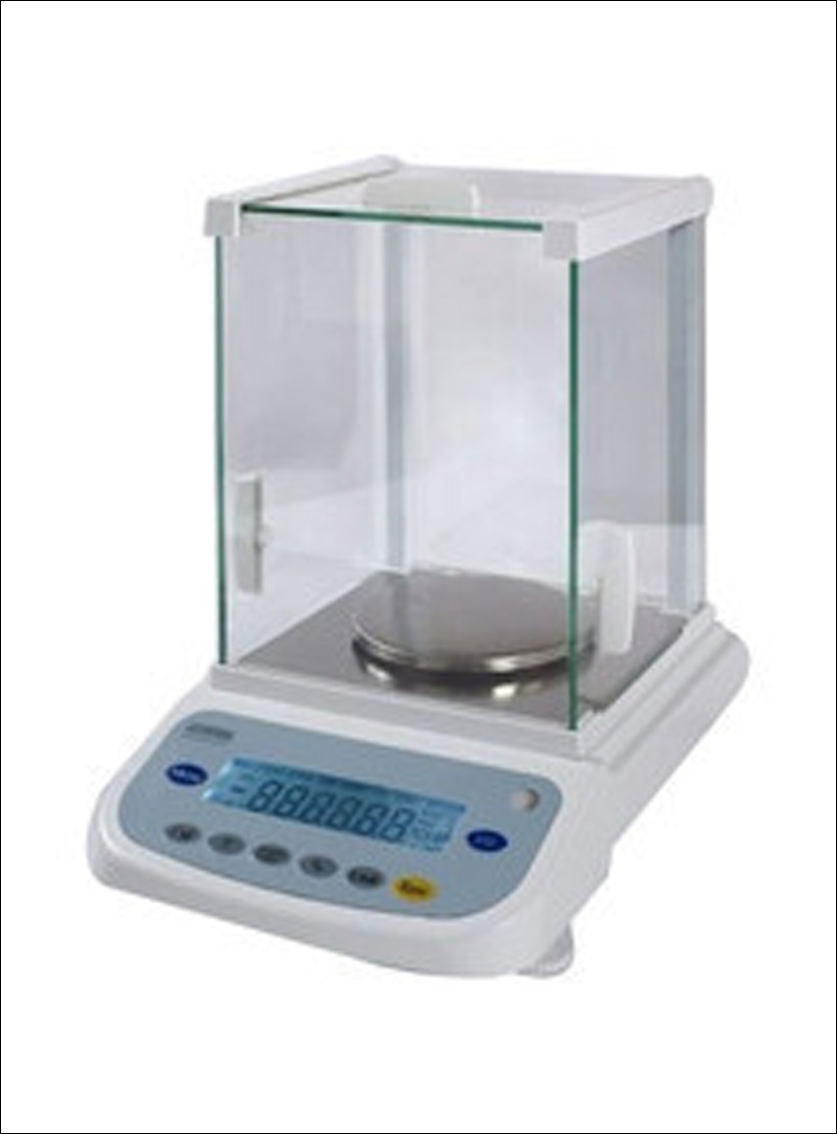

It works on the principle of Substitution of weights and has a special allow casted beam with magnetic damping device. Fitted with a heavy duty step down transformer to work in 220/ 230 volts AC. Supply.
